Description

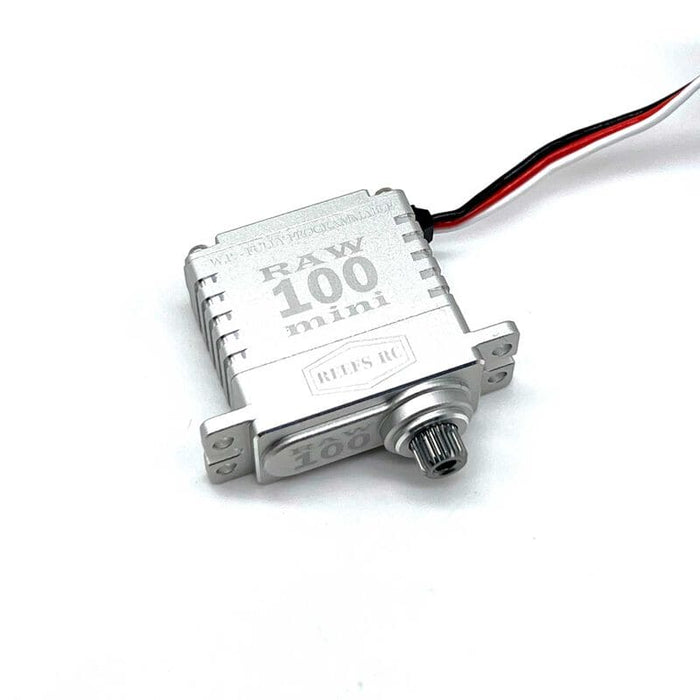

mini digital servo metal gear SEHREEFS134 RAW 100 Mini Digital Metal Gear Waterproof Programmable SeHigh Torque High Speed Mini Coreless Servo SUBMARINE WATERPROOF Magnetic Angle Sensor Pulse Width Modulation Control REEFS LINK required for Programming Product Specs Current Draw Idle 180mA @ 4. 8V, 200mA @ 6. 0V, 230mA @ 7. 4V, 260mA @ 8. 4V Product Width 0. 55" (14 mm) Connector Type Universal Maximum Servo Speed 0. 10 sec 60 deg @ 7. 4V, 0. 08 sec 60 deg @ 8. 4V Product Length 1. 16" (29 mm) Bearing Dual Ball Bearing Bushing Or Bearing Bearing
- High Torque High Speed
- Mini Coreless Servo
- SUBMARINE WATERPROOF
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
Product Specs
Current Draw Idle
180mA @ 4.8V, 200mA @ 6.0V, 230mA @ 7.4V, 260mA @ 8.4V
Product Width
0.55" (14 mm)
Connector Type
Universal
Maximum Servo Speed
0.10 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V
Product Length
1.16" (29 mm)
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Application
1/14 - 1/16 Cars, Trucks
Product Weight
1.05oz (30g)
Spline Count
25 - Tooth
Water-Resistant
Yes
Maximum Servo Torque
95oz/in @ 7.4V, 103oz/in @ 8.4V
Current Draw Stall
1.2A @ 4.8V, 1.4A @ 6.0V, 1.5A @ 7.4V, 1.8A @ 8.4V
Servo Operating Voltage
6.0 - 8.4V (HV)
Gear Type
Metal
Deadband
2µs
Product Height
1.14" (29 mm)
Servo Type
Digital
Programmable
Yes
Servo Size Category
Mini
