Description
mic mute pedal Optogate PB-05 M IR Mic Mute Switch and Automatic Vocal Noise GateOptogate PB 05 M IR MIC MUTE A Music Directors Top Choice for talk back mic communications Optogate PB 05 M Automatic Microphone Switches have been around for over a decade! This gadget is the top special request from lead vocalists doing live performances to their primary touring companies, audio production companies, sound engineers, & audio technicians. For better control of Stage volume We suggest for every hard wired vocal microphone on stage to

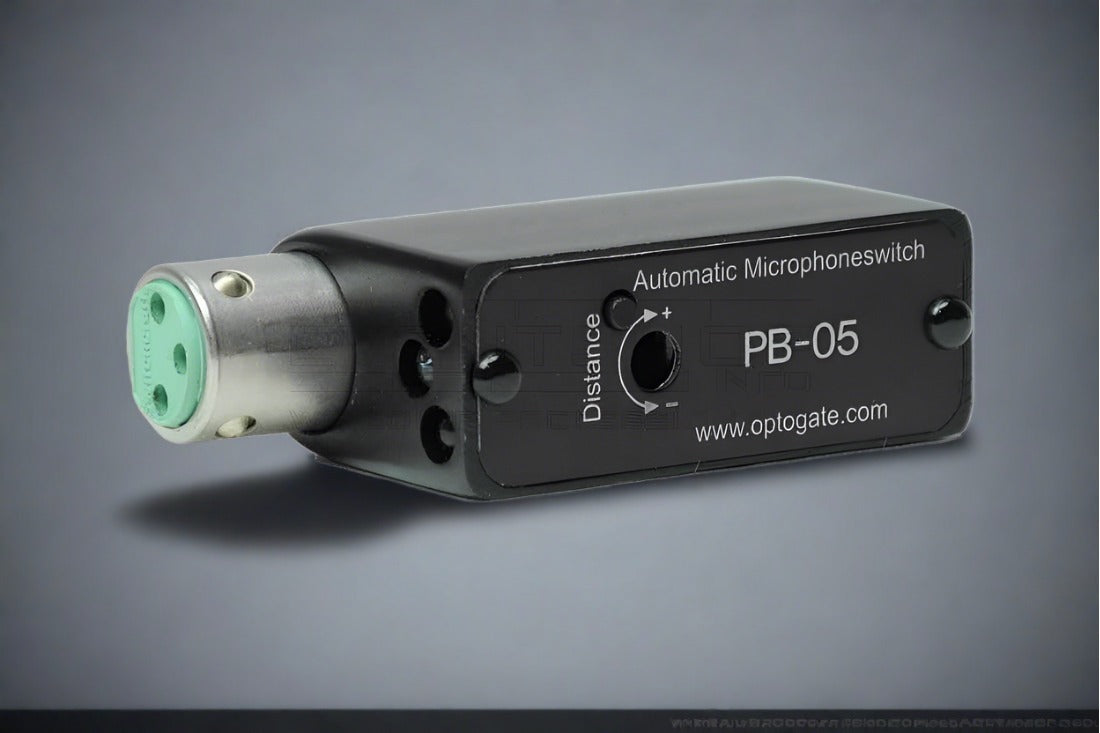

Optogate PB-05 M
IR MIC MUTE
A Music Directors Top Choice for talk back mic communications
Optogate PB-05 M Automatic Microphone Switches have been around for over a decade!
This gadget is the top special request from lead vocalists doing live performances to their primary touring companies, audio production companies, sound engineers, & audio technicians.
For better control of Stage volume We suggest for every hard wired vocal microphone on stage to put an Optogate on it!
This Optogate model PB-05 M :
-
Attaches through the back of the mic through the 3 pin XLR male and female attachment areas.
- No batteries or extra cables required -it is phantom powered through your mixer.
- Includes tool to set the proximity sensor distance to the musicians vocal technique.
- Using Infrared Proximity sensor now when musician is ready to sing they lean in line with Mic
“Mic ON”
- when musician needs a break or needs to chat to someone else lean back out of range
“Mic OFF”
(About -42 db)
- There is now Less possibility of feedback in your unused open mics.
- Greater control of stage volume
- Perception of increased headroom capacity in amps and FOH monitors.
- Sound Clarity everyone will love
From music artists themselves to Front Of House (FOH) , Music Directors (MD’s), Worship Leaders, and yes your live audience demand you get enough automatic mute switch Optogates to improve sound clarity & heal the bleed. ( if you’re in a rock band well then we “kill the bleed” as we bring life to your productions & performances) .
– XLR 3-pin connectors (1 = gnd, 2 = plus, 3 = minus)
The PB-05 is available in 2 versions.
If using in ear monitors or talk back mics get the PB-05 D (audio-duck)
Both units can be used with dynamic or condenser mics, have an adjustable distance “sensitivity” and have a bypass switch on top of the unit.
| Optogate PB-05 | |
|---|---|
| Dimensions: | 69mm Length x 35mm Height x 21mm width |
| Connectors: | XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) |
| Case construction: | Aircraft-aluminum, black galvanized |
| Distance | Adjustable between 15 - 120 cm (depending of the type of reflection surface) |
| Switching noise: | Immeasurable |
| Frequency responses | 0 Hz - 30kHz, - 3 dB at 150 Ohm Microphone impedance |
| Signal noise ratio: | -114 dB / -122 dB, Mic on / off, 150 Ohm Mic. |
| Distortion | < 0,05 % with 100mV signal |
| Delay time mic on: | < 0,2 Sec |
| Delay time mic off: | ca. 1 Sec |
| Attenuation "mic on": | 0 dB |
| Attenuation "mic off": | 16 dB or 42 dB in connection with 150 Ohm mics, depending of the model |
| Usable mic types: | All types of dynamic - Phantom powered mics up to 10 mA current consumption (M and D models) |
| Maximum input level: | 3 dB (1,1V) |
| Operating temperature: | 0 - 55 degrees Celsius |
| Background light range: | 0 - 20000 Lux daylight and 0 - 12000 Lux electric light bulb |
| Distance measurement: | Active infrared reflection principle with 3 bit code |
| Power: | 24-48 V Phantom power (passes phantom power to the microphone) |
| Current consumption: | ca. 3.7 mA |
